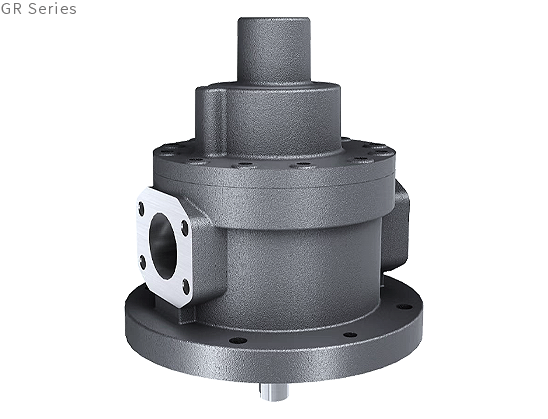

GR series internal meshing rotor pump is a product specially developed and designed for the wind power industry. It is used in the lubrication and cooling of gearboxes. It procures high-precision tooth grinding technology with an accuracy of up to level 4, improves gear hardness through carburizing and quenching process, and provides products with more reliable, more stable performance and longer service life. At the ambient temperature of -52°C, it still has a strong self-absorption ability to avoid poor oil absorption. Since 2016, it has been serving the wind power industry and supporting mechanical pumps for gearboxes.
Parameter Range
Flow range | 125~220 cm³/rev（Customizable other displacement products） |
| Maximum working pressure | 2.5 Mpa |
| Working viscosity | 1.4~20000 cst |
| Medium temperature | -40~+200℃ |
| Working medium | Lubricating oil, hydraulic oil or lubricating oil with similar properties |
Technical Characteristics
‧Low noise ≤68dB(A), smooth pulsation, low vibration
‧The pump casing material can be selected as gray cast iron or ductile iron
‧Bidirectional rotatable
‧Installation form: Gearbox shaft end installation
Application Areas
Widely used in wind power gearbox products.
If you have any questions, please feel free to contact us
